Safety Reflux Valve

manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com

Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)

product drawing

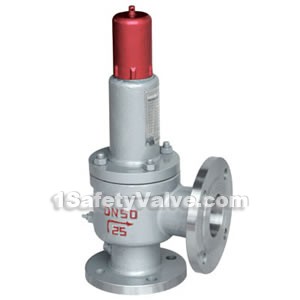

AH42F-16/25/40C/P angle type liquid safety reflux valves
AH42F-16/25/40C/P angle type liquid safety reflux valves
AH42F-P18 horizontal liquid safety reflux valve
AH42F-P18 horizontal liquid safety reflux valve

Applications

Spring closed safety reflux valve is suitable for liquid reflux pipes of working temperature -40 ~ +80 ℃ liquefied petroleum gas pump outlet, used for the safe reflux of over-pressure medium, when the before pump pressure exceeds the set value, the valve automatically opens, and makes safety reflux back into the tank, which ensures the safe operation of equipments and pipelines.

Dimensions & constructral diagram

AH42F-16/25/40C/P angle type liquid safety reflux valve constructral diagram
AH42F-16/25/40C/P angle type liquid safety reflux valve constructral diagram
AH42F-P18 horizontal liquid safety reflux valve
AH42F-P18 horizontal liquid safety reflux valve

External and connection dimensions

Nominal diameter DN(mm) AH42F-P18 type dimension(mm)
D D1 D2 b Z-Фd L H
40 150 110 85 16 4-18 200 236
50 165 125 100 16 4-18 230 266
65 185 145 120 20 4-18 290 430
80 200 160 135 20 8-18 310 490
100 215 180 155 22 8-18 350 548

External and connection dimensions(mm)

Nominal diameter DN(mm) AH42F-16C/P type dimension(mm) Weight (kg)
L L1 D D1 D2 b f Z-Фd DN' D' D1' D2' b' f' Z-Фd' H do
25 100 95 115 85 65 14 2 4-Ф14 32 140 100 78 16 3 4-Ф18 250 15 12
32 115 100 140 100 78 16 2 4-Ф18 40 150 110 85 16 3 4-Ф18 280 20 14
40 120 110 150 110 85 16 3 4-Ф18 50 165 125 100 16 3 4-Ф18 290 25 16
50 135 120 165 125 100 16 3 4-Ф18 65 185 145 120 18 3 4-Ф18 341 32 21
80 170 135 200 160 135 18 3 8-Ф18 100 220 180 155 20 3 8-Ф18 470 50 43
100 205 160 220 180 155 20 3 8-Ф18 125 250 210 185 22 3 8-Ф18 580 65 65
150 250 210 285 240 210 24 3 8-Ф22 175 315 270 240 26 3 8-Ф23 670 100 110
