Pilot Safety Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)
product drawing

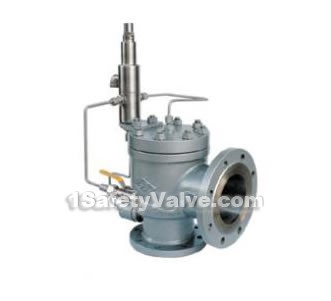

pilot safety valves
Applications
A46F / Y pilot pressure relief safety valve is a safety valve of novel structure. It is mainly used for petroleum gas, chemical, electric power, metallurgy, city gas and other fields, is the best over-pressure protection device of compression equipments, container or pipes. Its main advantages are changing the spring direct effect to pilot valve indirect effect, enhancing the sensitivity of the movement, and the 46F / Y pilot pressure relief safety valve adopts sleeve piston type, double sealing seat structure, high precision movements, good repeatability, fast back seat, no leakage, can discharge with high back pressure, long working life, stable and reliable working, 46F / Y pilot pressure relief valve is also available to on-line adjusting, and after repeatable open and discharge, it can still back seat automatically, close strictly, easy to operate and maintain.
Dimensions & constructral diagram
pilot safety valve constructral diagram
The materials of main parts
No. | part name | Ax46Y/F AF46Y/F Materials | KAX46Y/F Materials |
1 | Body | WCB | WCB |
2 | Disc | 2Cr13/2Cr13+PTFE | 1Cr18Ni9Ti/1Cr18Ni9Ti+PTFE |
3 | Guide sleeve | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
4 | Spring | 50CrVA | 50CrVA |
5 | O-ring | fluorubber | fluorubber |
6 | Bonnet | 25 | 25 |
7 | Pilot valve | Parts |
External and connection dimensions(mm)
type | nominal diameter | do | L | L1 | L2 | H | DN’ | D | D1 | D2 | D6 | b | Z-Фd | D’ | D1’ | D2’ | D6’ | b’ | Z-фd’ |
(K) AX46 F/Y- 16 AF46 Y-16 | 25 | 15 | 110 | 95 | 150 | 365 | 32 | 115 | 85 | 65 | 16 | 4-14 | 140 | 100 | 78 | 18 | 4-18 | ||
32 | 20 | 115 | 100 | 150 | 375 | 40 | 140 | 100 | 78 | 18 | 4-18 | 150 | 110 | 85 | 18 | 4-18 | |||
40 | 25 | 120 | 110 | 160 | 390 | 50 | 150 | 110 | 85 | 18 | 4-18 | 165 | 125 | 100 | 20 | 4-18 | |||
50 | 32 | 135 | 120 | 160 | 410 | 65 | 165 | 125 | 100 | 20 | 4-18 | 185 | 145 | 120 | 20 | 4-18 | |||
65 | 40 | 160 | 140 | 175 | 435 | 80 | 185 | 145 | 120 | 20 | 4-18 | 200 | 160 | 135 | 20 | 8-18 | |||
80 | 50 | 170 | 135 | 175 | 451 | 100 | 200 | 160 | 135 | 20 | 8-18 | 220 | 180 | 155 | 22 | 8-18 | |||
100 | 65 | 195 | 175 | 195 | 500 | 125 | 220 | 180 | 155 | 22 | 8-18 | 250 | 210 | 185 | 24 | 8-18 | |||
125 | 80 | 210 | 190 | 220 | 526 | 150 | 250 | 210 | 185 | 22 | 8-18 | 285 | 240 | 210 | 24 | 8-23 | |||
150 | 100 | 255 | 230 | 265 | 623 | 175 | 285 | 240 | 210 | 24 | 8-23 | 315 | 270 | 240 | 26 | 8-23 | |||
200 | 125 | 300 | 260 | 300 | 690 | 250 | 340 | 295 | 265 | 26 | 12-23 | 405 | 355 | 320 | 30 | 12-26 | |||
(K) AX46 F/Y- 25 AF46 Y-25 | 25 | 15 | 110 | 95 | 150 | 365 | 32 | 115 | 85 | 65 | 16 | 4-14 | 140 | 100 | 78 | 18 | 4-18 | ||
32 | 20 | 115 | 100 | 150 | 375 | 40 | 140 | 100 | 78 | 18 | 4-18 | 150 | 110 | 85 | 18 | 4-18 | |||
40 | 25 | 120 | 110 | 160 | 390 | 50 | 150 | 110 | 85 | 18 | 4-18 | 165 | 125 | 100 | 20 | 4-18 | |||
50 | 32 | 135 | 120 | 160 | 410 | 65 | 165 | 125 | 100 | 20 | 4-18 | 185 | 145 | 120 | 20 | 4-18 | |||
65 | 40 | 160 | 140 | 175 | 435 | 80 | 185 | 145 | 120 | 22 | 8-18 | 200 | 160 | 135 | 20 | 8-18 | |||
80 | 50 | 170 | 135 | 175 | 451 | 100 | 200 | 160 | 135 | 22 | 8-18 | 220 | 180 | 155 | 22 | 8-18 | |||
100 | 65 | 195 | 175 | 195 | 500 | 125 | 230 | 190 | 160 | 24 | 8-23 | 2502 | 210 | 185 | 22 | 8-18 | |||
125 | 80 | 210 | 190 | 220 | 526 | 150 | 270 | 220 | 188 | 28 | 8-26 | 85 | 240 | 210 | 24 | 8-23 | |||
150 | 100 | 255 | 230 | 265 | 623 | 175 | 300 | 250 | 218 | 30 | 8-26 | 310 | 270 | 240 | 26 | 8-23 | |||
200 | 125 | 300 | 260 | 300 | 690 | 250 | 360 | 310 | 278 | 34 | 12-26 | 405 | 355 | 320 | 30 | 12-26 | |||
(K) AX46 F/Y- 40 AF46 Y-40 | 25 | 15 | 110 | 95 | 150 | 365 | 32 | 115 | 85 | 65 | 58 | 16 | 4-14 | 140 | 100 | 78 | 18 | 4-18 | |
32 | 20 | 115 | 100 | 150 | 375 | 40 | 140 | 100 | 78 | 66 | 18 | 4-18 | 150 | 110 | 85 | 18 | 4-18 | ||
40 | 25 | 120 | 110 | 160 | 390 | 50 | 150 | 110 | 85 | 76 | 18 | 4-18 | 165 | 125 | 100 | 20 | 4-18 | ||
50 | 32 | 135 | 120 | 160 | 410 | 65 | 165 | 125 | 100 | 88 | 20 | 4-18 | 185 | 145 | 120 | 20 | 4-18 | ||
65 | 40 | 160 | 140 | 175 | 435 | 80 | 185 | 145 | 120 | 110 | 22 | 8-18 | 200 | 160 | 135 | 20 | 8-18 | ||
80 | 50 | 170 | 135 | 175 | 451 | 100 | 200 | 160 | 135 | 121 | 22 | 8-18 | 220 | 180 | 155 | 22 | 8-18 | ||
100 | 65 | 195 | 175 | 195 | 500 | 125 | 235 | 190 | 160 | 150 | 24 | 8-23 | 250 | 210 | 185 | 22 | 8-18 | ||
125 | 80 | 210 | 190 | 220 | 526 | 150 | 270 | 220 | 188 | 176 | 28 | 8-26 | 285 | 240 | 210 | 24 | 8-23 | ||
150 | 100 | 255 | 230 | 265 | 623 | 175 | 300 | 250 | 218 | 204 | 30 | 8-26 | 310 | 270 | 240 | 26 | 8-23 | ||
200 | 125 | 300 | 260 | 300 | 690 | 250 | 375 | 320 | 282 | 260 | 38 | 12-30 | 405 | 355 | 320 | 30 | 12-26 | ||
(K) AX46 F/Y- 64 AF46 Y-64 | 25 | 15 | 110 | 100 | 160 | 365 | 32 | 140 | 100 | 78 | 58 | 22 | 4-18 | 140 | 100 | 78 | 66 | 18 | 4-18 |
32 | 20 | 130 | 110 | 160 | 375 | 40 | 155 | 110 | 82 | 66 | 24 | 4-23 | 150 | 110 | 85 | 76 | 18 | 4-18 | |
40 | 25 | 130 | 120 | 170 | 445 | 50 | 170 | 125 | 95 | 76 | 24 | 4-23 | 165 | 125 | 100 | 88 | 20 | 4-18 | |
50 | 32 | 135 | 130 | 195 | 460 | 65 | 180 | 135 | 105 | 88 | 26 | 4-23 | 185 | 145 | 120 | 110 | 22 | 8-18 | |
65 | 40 | 175 | 160 | 225 | 495 | 80 | 205 | 160 | 130 | 110 | 28 | 8-23 | 200 | 160 | 135 | 121 | 22 | 8-18 | |
80 | 50 | 175 | 160 | 225 | 525 | 100 | 215 | 170 | 140 | 121 | 30 | 8-23 | 235 | 190 | 160 | 150 | 24 | 8-23 | |
100 | 65 | 195 | 195 | 245 | 565 | 125 | 250 | 200 | 168 | 150 | 32 | 8-26 | 270 | 220 | 188 | 176 | 28 | 8-25 | |
150 | 100 | 280 | 265 | 265 | 610 | 200 | 345 | 280 | 240 | 204 | 38 | 8-34 | 375 | 320 | 282 | 260 | 38 | 12-30 | |
200 | 125 | 300 | 295 | 300 | 680 | 250 | 405 | 345 | 300 | 260 | 44 | 12-34 | 450 | 385 | 345 | 313 | 42 | 12-34 | |
(K) AX46 F/Y-1 100 AF46 Y-100 | 25 | 15 | 110 | 100 | 160 | 365 | 32 | 140 | 100 | 78 | 58 | 24 | 4-18 | 140 | 100 | 78 | 66 | 18 | 4-18 |
32 | 20 | 130 | 110 | 160 | 375 | 40 | 155 | 110 | 82 | 66 | 24 | 4-23 | 150 | 110 | 85 | 76 | 18 | 4-18 | |
40 | 25 | 130 | 120 | 170 | 445 | 50 | 170 | 125 | 95 | 76 | 26 | 4-23 | 165 | 125 | 100 | 88 | 20 | 4-18 | |
50 | 32 | 135 | 130 | 195 | 460 | 65 | 195 | 145 | 112 | 88 | 28 | 4-26 | 185 | 145 | 120 | 110 | 22 | 8-18 | |
65 | 40 | 175 | 160 | 225 | 495 | 80 | 220 | 170 | 138 | 110 | 32 | 8-26 | 200 | 160 | 135 | 121 | 22 | 8-18 | |
80 | 50 | 175 | 160 | 225 | 525 | 100 | 230 | 180 | 148 | 121 | 34 | 8-26 | 235 | 190 | 160 | 150 | 24 | 8-23 | |
100 | 65 | 195 | 195 | 245 | 565 | 125 | 265 | 210 | 172 | 150 | 38 | 8-30 | 270 | 220 | 188 | 176 | 28 | 8-25 | |
150 | 100 | 280 | 265 | 265 | 610 | 200 | 355 | 290 | 250 | 204 | 46 | 12-34 | 375 | 320 | 282 | 260 | 38 | 12-30 | |
200 | 125 | 300 | 295 | 300 | 680 | 250 | 430 | 360 | 312 | 260 | 54 | 12-41 | 450 | 385 | 345 | 313 | 42 | 12-34 |
