High Temperature and Pressure Fall Lift Safety Valve

manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com

Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)

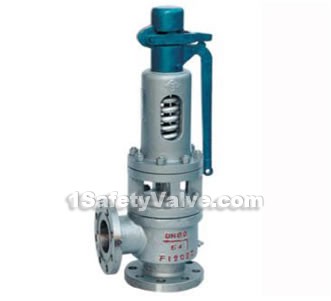

product drawing

High temperature and pressure fall lift safety valves
High temperature and pressure fall lift safety valves

Applications

A48SH-64C/I/V safety valve, "C-type" high-temperature and pressure fall lift safety valve is suitable for the operating temperature ≤ 425 ℃; "I type" high-temperature and pressure fall lift safety valve is suitable for the medium temperature ≤ 500 ℃; "V type " high-temperature and pressure fall lift safety valve is applied to equipments and pipes of steam and other media that working temperature is ≤500℃, used as the overpressure protection device.

Dimensions & constructral diagram

High temperature and pressure fall lift safety valve constructral diagram
High temperature and pressure fall lift safety valve constructral diagram

The materials of main parts

No. part name C type Materials I type Materials V type Materials
1 Body WCB ZG1Cr5Mo ZG15Cr1Mo1V
2 Seat 2Cr13 1Cr18Ni9Ti 12Cr1MoVA
3 Adjusting ring 2Cr13 1Cr18Ni9Ti 1Cr18Ni9Ti
4 Disc 2Cr13 17-4PH 17-4PH
5 Guide sleeve 2Cr13 1Cr18Ni9Ti 1Cr18Ni9Ti
6 Radiator ZG230-450 ZG230-450 ZG230-450
7 Bonnet ZG230-450 ZG230-450 ZG230-450
8 Spring 50CrVA 50CrVA 50CrVA

External and connection dimensions(mm)

Nominal diameter DN(mm) Dimensions(mm)
do L L1 DN
40 25 135 120 50
50 32 160 130 65
80 50 175 160 100
100 65 220 200 125
150 100 285 260 200
200 125 350 320 250
