900 DIN Safety Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

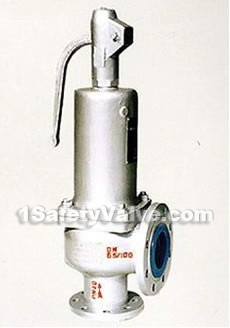

product drawing
900 DIN safety valves
Fall lift D/G (steam, gas) Standard type F(liquid)
900 series DIN safety valves are mainly used in petroleum, natural gas, chemistry, electric, city gas and other field, used as the overpressure protection device, with high acting precision, good recycling, accurate back seat, easy to operate and maintain.
Dimensions & constructral diagram

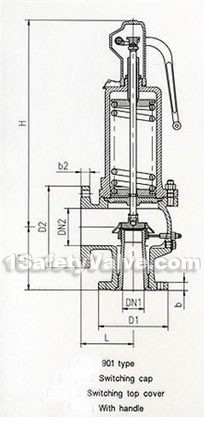

901 DIN safety valve constructral diagram

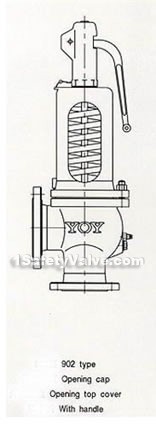

902 DIN safety valve constructral diagram

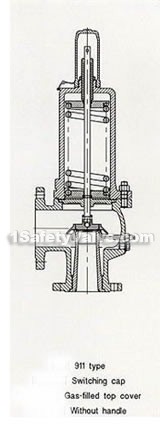

911 DIN safety valve constructral diagram

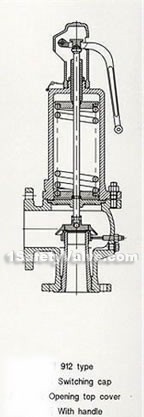

912 DIN safety valve constructral diagram
| type | Nominal pressure | Body materials | Nominal diameter | Working temperature |
| 35.901/902/911/912 | PN40/16 | Cast steel 1.0619+N | DN20/32—DN150/250 | -10℃--+450℃ |
| 55.901/911 | PN40/16 | Stainless steel 1.4408 | DN20/32—DN100/150 | -60℃--+400℃ |
| DN | 20/32 | 25/40 | 32/50 | 40/65 | 50/80 | 65/100 | 80/125 | 100/150 | 125/200 | 150/250 |
| Flowing hole diameter D0(mm) | 18 | 22.5 | 29 | 36 | 45 | 58.5 | 72 | 80 | 100 | 125 |
| Flowing area A0(mm) | 254 | 398 | 661 | 1018 | 1590 | 2688 | 4072 | 6362 | 8825 | 12266 |
| Weight (kg) | 8.5 | 10 | 14 | 20 | 28 | 40 | 53 | 80 | 125 | 165 |

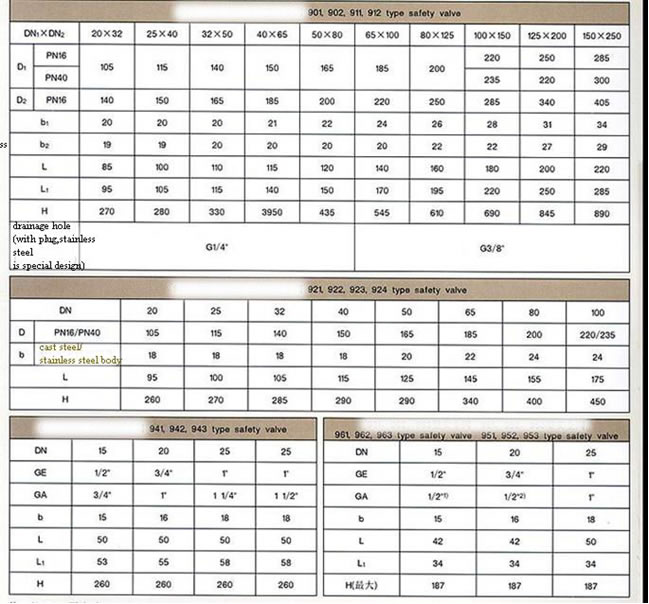

External and connection dimensions
Note:1)DN15GA can select 3/4’2)DN20GA can select 3/4’and 1’
