Copper Safety Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing

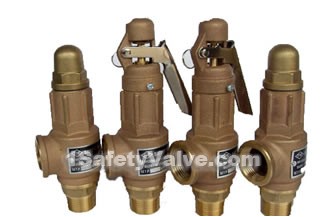

Copper safety valves
Usages
This product is a kind of automatic control and protection valve. It does not use any external force, just use media power to emit a certain amount of media, in order to prevent the system pressure exceeding a preconcerted safe value. When the pressure return to normal value, the safety valve automatically closes to prevent the continued exclusion of media. It is applied to control and protect pressure of boilers, hydraulic machines, oil machines, air compressors, air conditioners and other pressure systems.
Performance parameters
| suitable temperature： | ≤220℃ |
| hosit pressure differential： | ≤15% set pressure |
| nominal pressure： | 1.6Mpa |
| Applicable medium： | air, steam, water |
| applicable set pressure scope： | 1. 0.3～0.7Mpa， 2. 0.6～1.0Mpa，3. 1.0～1.6Mpa |
| specification： | unit：mm |
Main connection dimensions
| type,specification | inlet connection | outlet connection | nominal diameter | flow diameter | open height ±5% | external dimension | |
| width | height | ||||||
| A27HT-1.6T15 | R1/4 | G1/4 | Φ15 | Φ9 | 0.6 | 84 | 197 |
| A27HT-1.6T20 | R1/4 | G1 | Φ20 | Φ12 | 0.8 | 86 | 175 |
| A27HT-1.6T25 | R1 | G11/4 | Φ25 | Φ16 | 1 | 102 | 162 |
| A27HT-1.6T32 | R1 1/4 | G11/2 | Φ32 | Φ20 | 1.25 | 117 | 218 |
| A27HT-1.6T40 | R1 1/2 | G1 | Φ40 | Φ25 | 1.6 | 122 | 245 |
| type,specification | inlet connection | outlet connection | nominal diameter | flow diameter | open height ±5% | external dimension | |
| wodth | height | ||||||
| A28HT-1.6T15 | R1/2 | G1/4 | Φ15 | Φ9 | 2.25 | 88 | 170.5 |
| A28HT-1.6T20 | R3/4 | G1 | Φ20 | Φ12 | 3 | 90 | 176 |
| A28HT-1.6T25 | R1 | G11/4 | Φ25 | Φ16 | 4 | 95 | 202.5 |
| A28HT-1.6T32 | R1 1/4 | G11/2 | Φ32 | Φ20 | 5 | 121 | 223.5 |
| A28HT-1.6T40 | R1 1/2 | G2Φ | Φ40 | Φ25 | 6.25 | 127 | 250.5 |
